Chapter 13 Novelty-lexicase

13.1 Overview

# Relative location of data.
working_directory <- "experiments/2021-06-01-novelty/analysis/"
# working_directory <- "./"

# Settings for visualization
cb_palette <- "Set2"

# Create directory to dump plots
dir.create(paste0(working_directory, "imgs"), showWarnings=FALSE)

13.2 Analysis dependencies

library(ggplot2)
library(tidyverse)
library(knitr)
library(cowplot)
library(viridis)
library(RColorBrewer)
library(rstatix)
library(ggsignif)
library(Hmisc)
library(kableExtra)
source("https://gist.githubusercontent.com/benmarwick/2a1bb0133ff568cbe28d/raw/fb53bd97121f7f9ce947837ef1a4c65a73bffb3f/geom_flat_violin.R")

These analyses were conducted in the following computing environment:

print(version)

##                _
## platform       x86_64-pc-linux-gnu
## arch           x86_64
## os             linux-gnu
## system         x86_64, linux-gnu
## status
## major          4
## minor          1.0
## year           2021
## month          05
## day            18
## svn rev        80317
## language       R
## version.string R version 4.1.0 (2021-05-18)
## nickname       Camp Pontanezen

13.3 Setup

data_loc <- paste0(
  working_directory,
  "data/timeseries-res-1000g.csv"
)

data <- read.csv(data_loc, na.strings="NONE")

data$cardinality <- as.factor(
  data$OBJECTIVE_CNT
)
data$selection_name <- as.factor(
  data$selection_name
)

data$epsilon <- as.factor(
  data$LEX_EPS
)

data$k <- as.factor(
   data$NOVEL_K
)

data$elite_trait_avg <-
  data$ele_agg_per / data$OBJECTIVE_CNT
data$unique_start_positions_coverage <-
  data$uni_str_pos / data$OBJECTIVE_CNT

final_data <- filter(data, evaluations==max(data$evaluations))

# Labeler for stats annotations
p_label <- function(p_value) {
  threshold = 0.0001
  if (p_value < threshold) {
    return(paste0("p < ", threshold))
  } else {
    return(paste0("p = ", p_value))
  }
}

# Significance threshold
alpha <- 0.05

####### misc #######
# Configure our default graphing theme
theme_set(theme_cowplot())

13.4 Exploration diagnostic performance

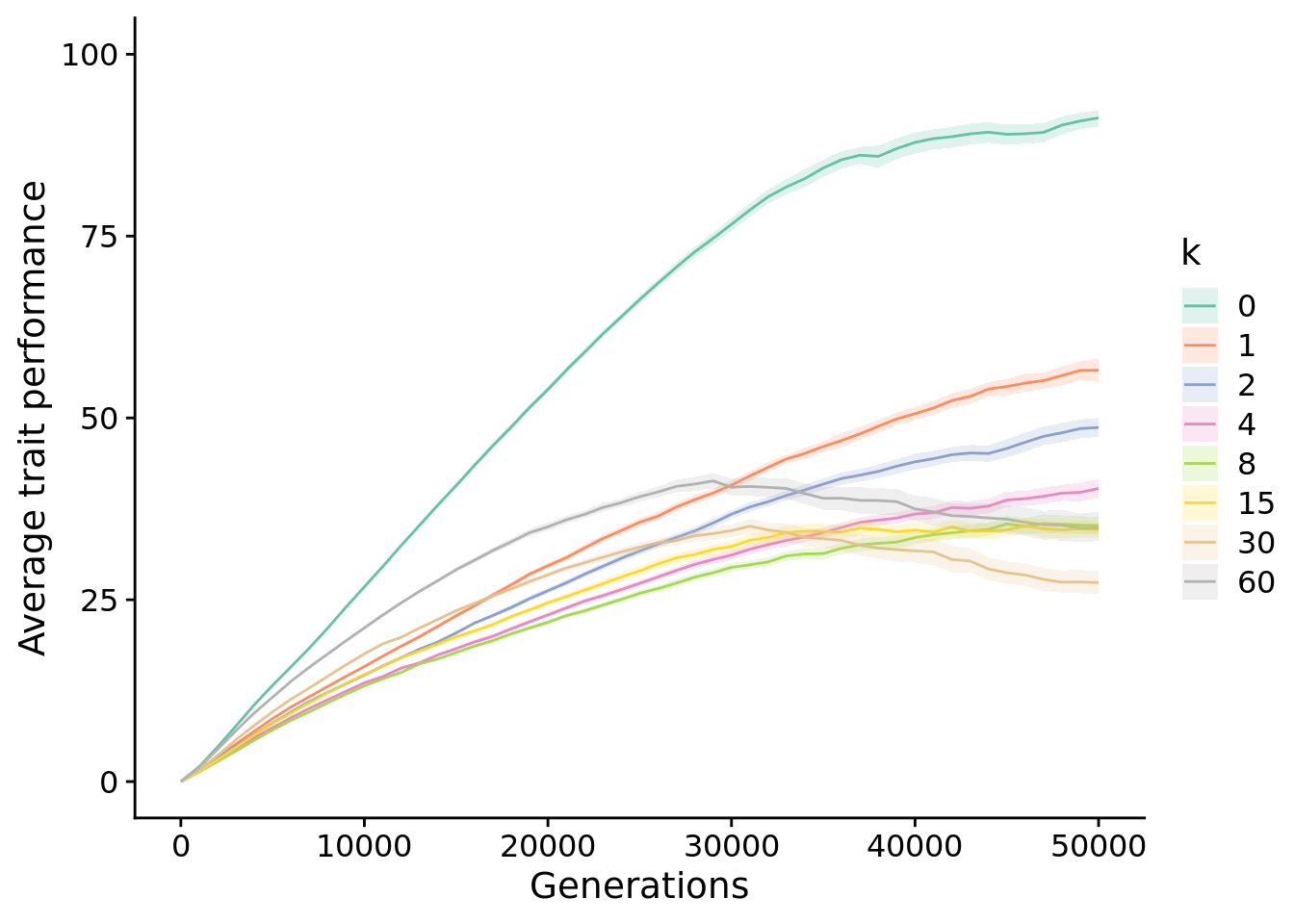

elite_ave_performance_fig <-
  ggplot(
    data,
    aes(x=gen, y=elite_trait_avg, color=k, fill=k)
  ) +
  stat_summary(geom="line", fun=mean) +
  stat_summary(
    geom="ribbon",
    fun.data="mean_cl_boot",
    fun.args=list(conf.int=0.95),
    alpha=0.2,
    linetype=0
  ) +
  scale_y_continuous(
    name="Average trait performance",
    limits=c(0, 100)
  ) +
  scale_x_continuous(
    name="Generations"
  ) +
  scale_fill_brewer(
    name="k",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="k",
    palette=cb_palette
  )
elite_ave_performance_fig

13.4.1 Final performance

# Compute manual labels for geom_signif
stat.test <- final_data %>%
  wilcox_test(elite_trait_avg ~ k) %>%
  adjust_pvalue(method = "bonferroni") %>%
  add_significance() %>%
  add_xy_position(x="k",step.increase=1)
stat.test$manual_position <- stat.test$y.position * 1.05
stat.test$label <- mapply(p_label,stat.test$p.adj)

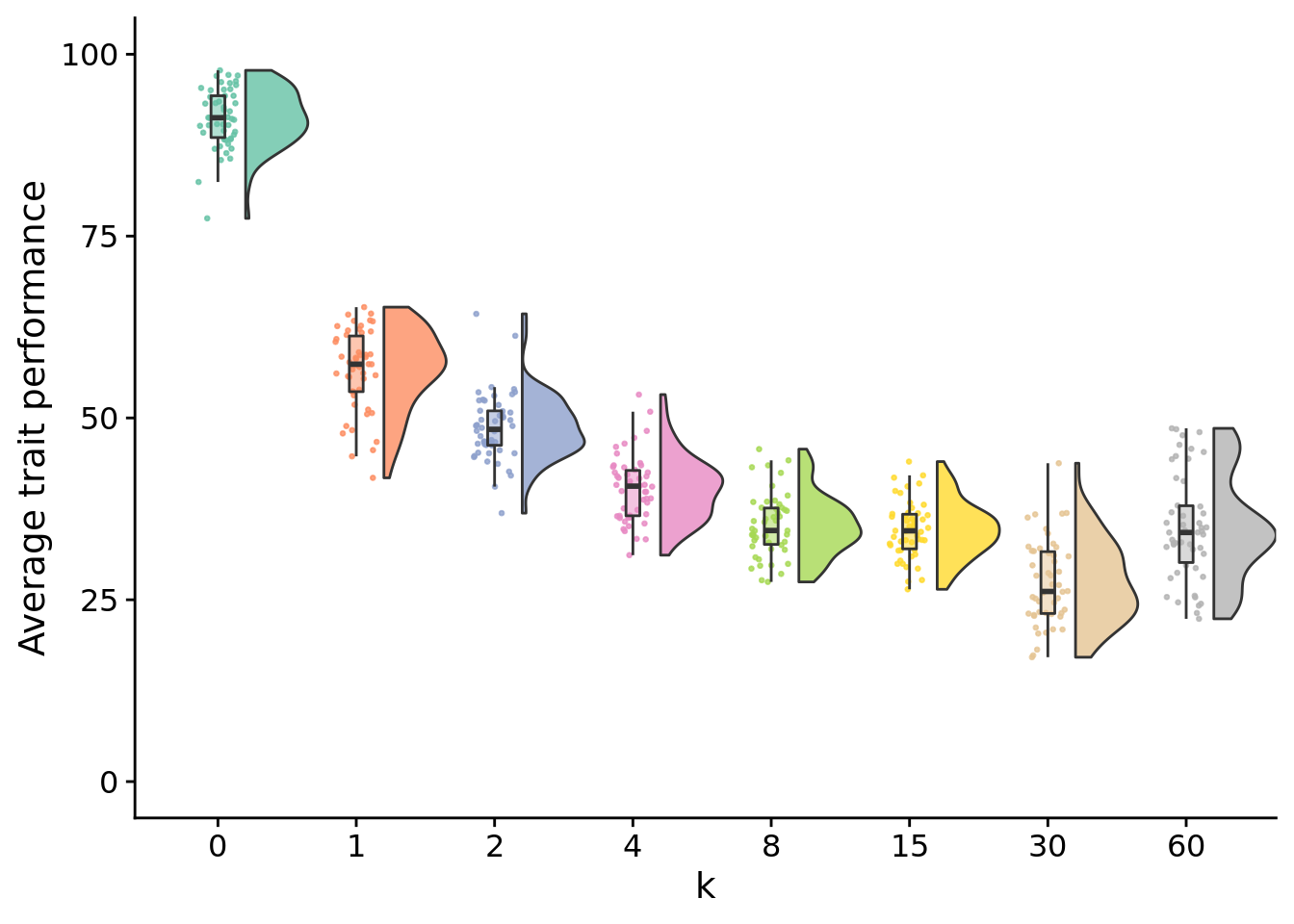

elite_final_performance_fig <- ggplot(
    final_data,
    aes(x=k, y=elite_trait_avg, fill=k)
  ) +
  geom_flat_violin(
    position = position_nudge(x = .2, y = 0),
    alpha = .8,
    scale="width"
  ) +
  geom_point(
    mapping=aes(color=k),
    position = position_jitter(width = .15),
    size = .5,
    alpha = 0.8
  ) +
  geom_boxplot(
    width = .1,
    outlier.shape = NA,
    alpha = 0.5
  ) +
  scale_y_continuous(
    name="Average trait performance",
    limits=c(0, 100)
  ) +
  scale_x_discrete(
    name="k"
  ) +
  scale_fill_brewer(
    name="k",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="k",
    palette=cb_palette
  ) +
  theme(
    legend.position="none"
  )
elite_final_performance_fig

stat.test %>%
  kbl() %>%
  kable_styling(
    bootstrap_options = c(
      "striped",
      "hover",
      "condensed",
      "responsive"
    )
  ) %>%
  scroll_box(width="600px")

.y.	group1	group2	n1	n2	statistic	p	p.adj	p.adj.signif	y.position	groups	xmin	xmax	manual_position	label
elite_trait_avg	0	1	50	50	2500	0.00e+00	0.0000000	****	151.8030	0, 1	1	2	159.3931	p < 1e-04
elite_trait_avg	0	2	50	50	2500	0.00e+00	0.0000000	****	207.8186	0, 2	1	3	218.2095	p < 1e-04
elite_trait_avg	0	4	50	50	2500	0.00e+00	0.0000000	****	263.8341	0, 4	1	4	277.0258	p < 1e-04
elite_trait_avg	0	8	50	50	2500	0.00e+00	0.0000000	****	319.8497	0, 8	1	5	335.8422	p < 1e-04
elite_trait_avg	0	15	50	50	2500	0.00e+00	0.0000000	****	375.8652	0 , 15	1	6	394.6585	p < 1e-04
elite_trait_avg	0	30	50	50	2500	0.00e+00	0.0000000	****	431.8808	0 , 30	1	7	453.4748	p < 1e-04
elite_trait_avg	0	60	50	50	2500	0.00e+00	0.0000000	****	487.8963	0 , 60	1	8	512.2912	p < 1e-04
elite_trait_avg	1	2	50	50	2137	0.00e+00	0.0000000	****	543.9119	1, 2	2	3	571.1075	p < 1e-04
elite_trait_avg	1	4	50	50	2451	0.00e+00	0.0000000	****	599.9274	1, 4	2	4	629.9238	p < 1e-04
elite_trait_avg	1	8	50	50	2493	0.00e+00	0.0000000	****	655.9430	1, 8	2	5	688.7401	p < 1e-04
elite_trait_avg	1	15	50	50	2497	0.00e+00	0.0000000	****	711.9586	1 , 15	2	6	747.5565	p < 1e-04
elite_trait_avg	1	30	50	50	2499	0.00e+00	0.0000000	****	767.9741	1 , 30	2	7	806.3728	p < 1e-04
elite_trait_avg	1	60	50	50	2467	0.00e+00	0.0000000	****	823.9897	1 , 60	2	8	865.1892	p < 1e-04
elite_trait_avg	2	4	50	50	2277	0.00e+00	0.0000000	****	880.0052	2, 4	3	4	924.0055	p < 1e-04
elite_trait_avg	2	8	50	50	2459	0.00e+00	0.0000000	****	936.0208	2, 8	3	5	982.8218	p < 1e-04
elite_trait_avg	2	15	50	50	2480	0.00e+00	0.0000000	****	992.0363	2 , 15	3	6	1041.6381	p < 1e-04
elite_trait_avg	2	30	50	50	2494	0.00e+00	0.0000000	****	1048.0519	2 , 30	3	7	1100.4545	p < 1e-04
elite_trait_avg	2	60	50	50	2341	0.00e+00	0.0000000	****	1104.0674	2 , 60	3	8	1159.2708	p < 1e-04
elite_trait_avg	4	8	50	50	1988	4.00e-07	0.0000103	****	1160.0830	4, 8	4	5	1218.0872	p < 1e-04
elite_trait_avg	4	15	50	50	2074	0.00e+00	0.0000004	****	1216.0986	4 , 15	4	6	1276.9035	p < 1e-04
elite_trait_avg	4	30	50	50	2389	0.00e+00	0.0000000	****	1272.1141	4 , 30	4	7	1335.7198	p < 1e-04
elite_trait_avg	4	60	50	50	1854	3.18e-05	0.0008904	***	1328.1297	4 , 60	4	8	1394.5361	p = 0.0008904
elite_trait_avg	8	15	50	50	1343	5.24e-01	1.0000000	ns	1384.1452	8 , 15	5	6	1453.3525	p = 1
elite_trait_avg	8	30	50	50	2159	0.00e+00	0.0000000	****	1440.1608	8 , 30	5	7	1512.1688	p < 1e-04
elite_trait_avg	8	60	50	50	1346	5.10e-01	1.0000000	ns	1496.1763	8 , 60	5	8	1570.9851	p = 1
elite_trait_avg	15	30	50	50	2127	0.00e+00	0.0000000	****	1552.1919	15, 30	6	7	1629.8015	p < 1e-04
elite_trait_avg	15	60	50	50	1287	8.01e-01	1.0000000	ns	1608.2074	15, 60	6	8	1688.6178	p = 1
elite_trait_avg	30	60	50	50	515	4.00e-07	0.0000115	****	1664.2230	30, 60	7	8	1747.4342	p < 1e-04

13.5 Activation position coverage

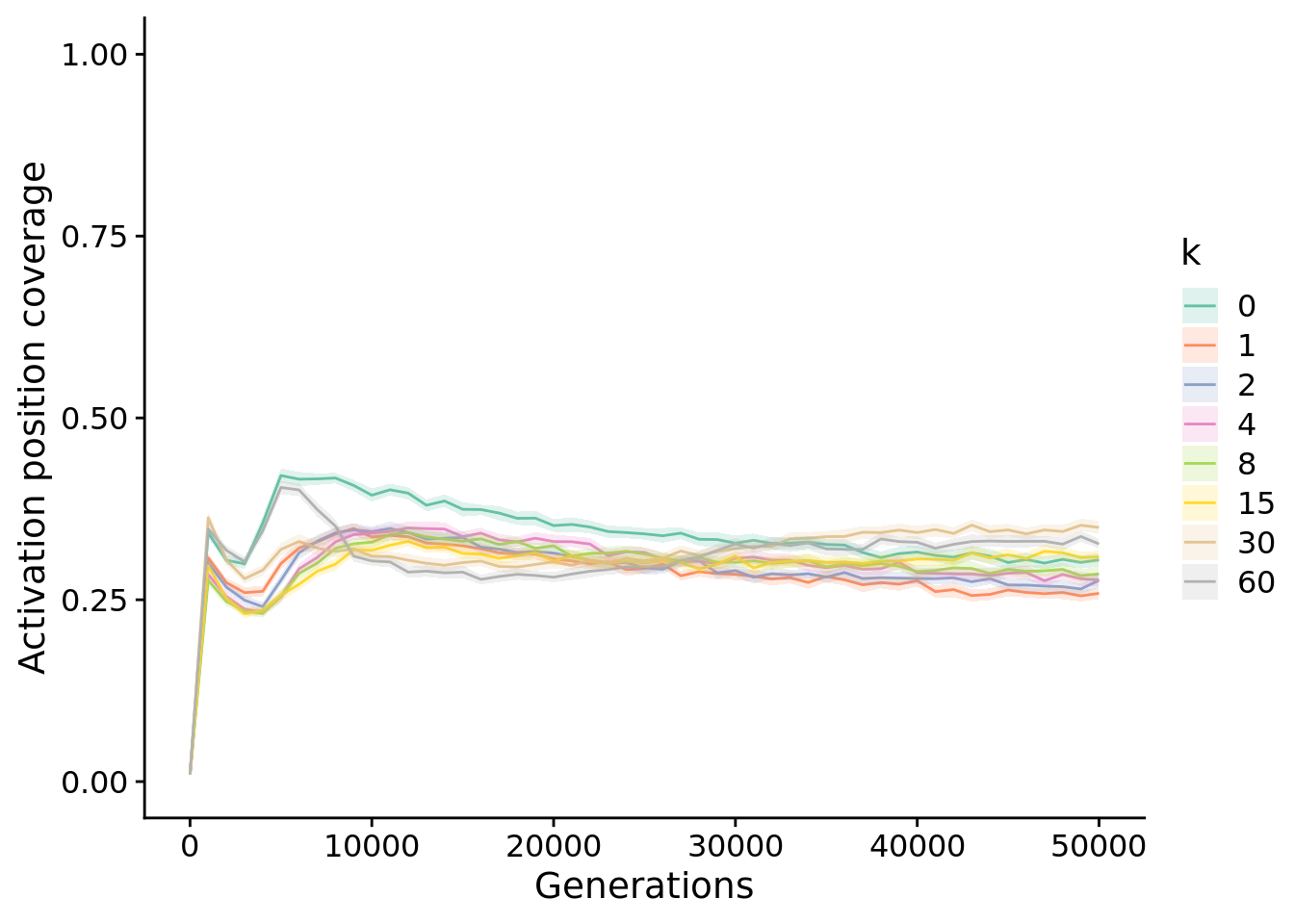

unique_start_position_coverage_fig <- ggplot(
    data,
    aes(x=gen, y=unique_start_positions_coverage, color=k, fill=k)
  ) +
  stat_summary(geom="line", fun=mean) +
  stat_summary(
    geom="ribbon",
    fun.data="mean_cl_boot",
    fun.args=list(conf.int=0.95),
    alpha=0.2,
    linetype=0
  ) +
  scale_y_continuous(
    name="Activation position coverage",
    limits=c(0.0, 1.0)
  ) +
  scale_x_continuous(
    name="Generations"
  ) +
  scale_fill_brewer(
    name="k",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="k",
    palette=cb_palette
  )
unique_start_position_coverage_fig

13.5.1 Final activation position coverage

# Compute manual labels for geom_signif
stat.test <- final_data %>%
  wilcox_test(unique_start_positions_coverage ~ k) %>%
  adjust_pvalue(method = "bonferroni") %>%
  add_significance() %>%
  add_xy_position(x="k",step.increase=1)
stat.test$manual_position <- stat.test$y.position * 1.05
stat.test$label <- mapply(p_label,stat.test$p.adj)

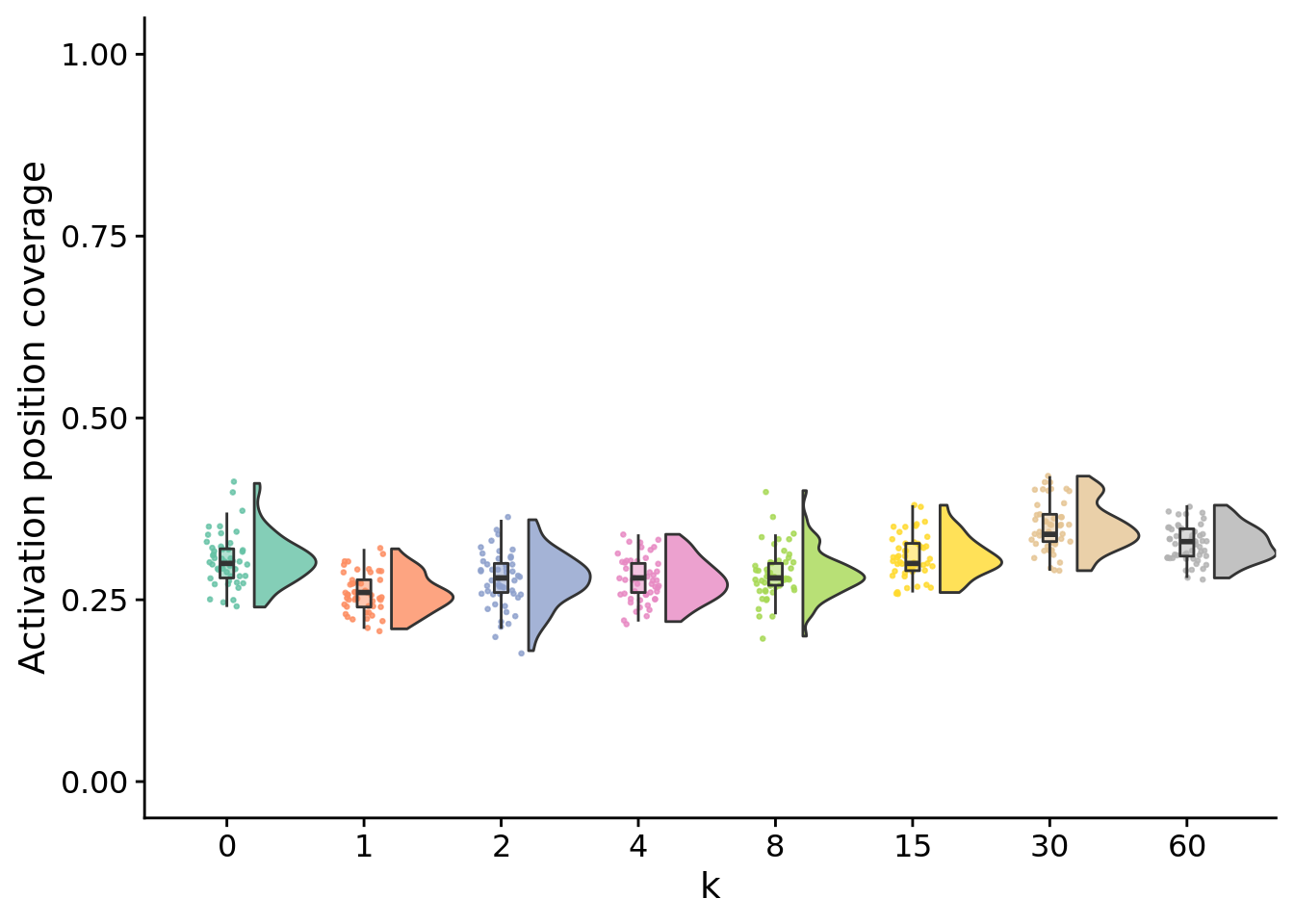

unique_start_positions_coverage_final_fig <- ggplot(
    final_data,
    aes(x=k, y=unique_start_positions_coverage, fill=k)
  ) +
  geom_flat_violin(
    position = position_nudge(x = .2, y = 0),
    alpha = .8,
    scale="width"
  ) +
  geom_point(
    mapping=aes(color=k),
    position = position_jitter(width = .15),
    size = .5,
    alpha = 0.8
  ) +
  geom_boxplot(
    width = .1,
    outlier.shape = NA,
    alpha = 0.5
  ) +
  scale_y_continuous(
    name="Activation position coverage",
    limits=c(0, 1.0)
  ) +
  scale_x_discrete(
    name="k"
  ) +
  scale_fill_brewer(
    name="k",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="k",
    palette=cb_palette
  ) +
  theme(
    legend.position="none"
  )
unique_start_positions_coverage_final_fig

stat.test %>%
  kbl() %>%
  kable_styling(
    bootstrap_options = c(
      "striped",
      "hover",
      "condensed",
      "responsive"
    )
  ) %>%
  scroll_box(width="600px")

.y.	group1	group2	n1	n2	statistic	p	p.adj	p.adj.signif	y.position	groups	xmin	xmax	manual_position	label
unique_start_positions_coverage	0	1	50	50	2151.0	0.00e+00	0.0000000	****	0.5200000	0, 1	1	2	0.5460000	p < 1e-04
unique_start_positions_coverage	0	2	50	50	1759.5	4.26e-04	0.0119280		0.6237037	0, 2	1	3	0.6548889	p = 0.011928
unique_start_positions_coverage	0	4	50	50	1806.0	1.19e-04	0.0033320	**	0.7274074	0, 4	1	4	0.7637778	p = 0.003332
unique_start_positions_coverage	0	8	50	50	1675.0	3.00e-03	0.0840000	ns	0.8311111	0, 8	1	5	0.8726667	p = 0.084
unique_start_positions_coverage	0	15	50	50	1132.0	4.15e-01	1.0000000	ns	0.9348148	0 , 15	1	6	0.9815556	p = 1
unique_start_positions_coverage	0	30	50	50	405.5	0.00e+00	0.0000001	****	1.0385185	0 , 30	1	7	1.0904444	p < 1e-04
unique_start_positions_coverage	0	60	50	50	692.5	1.13e-04	0.0031640	**	1.1422222	0 , 60	1	8	1.1993333	p = 0.003164
unique_start_positions_coverage	1	2	50	50	839.0	4.00e-03	0.1120000	ns	1.2459259	1, 2	2	3	1.3082222	p = 0.112
unique_start_positions_coverage	1	4	50	50	820.0	3.00e-03	0.0840000	ns	1.3496296	1, 4	2	4	1.4171111	p = 0.084
unique_start_positions_coverage	1	8	50	50	659.5	4.35e-05	0.0012180	**	1.4533333	1, 8	2	5	1.5260000	p = 0.001218
unique_start_positions_coverage	1	15	50	50	249.0	0.00e+00	0.0000000	****	1.5570370	1 , 15	2	6	1.6348889	p < 1e-04
unique_start_positions_coverage	1	30	50	50	33.0	0.00e+00	0.0000000	****	1.6607407	1 , 30	2	7	1.7437778	p < 1e-04
unique_start_positions_coverage	1	60	50	50	78.5	0.00e+00	0.0000000	****	1.7644444	1 , 60	2	8	1.8526667	p < 1e-04
unique_start_positions_coverage	2	4	50	50	1275.0	8.65e-01	1.0000000	ns	1.8681481	2, 4	3	4	1.9615556	p = 1
unique_start_positions_coverage	2	8	50	50	1124.5	3.86e-01	1.0000000	ns	1.9718519	2, 8	3	5	2.0704444	p = 1
unique_start_positions_coverage	2	15	50	50	631.0	1.84e-05	0.0005152	***	2.0755556	2 , 15	3	6	2.1793333	p = 0.0005152
unique_start_positions_coverage	2	30	50	50	169.0	0.00e+00	0.0000000	****	2.1792593	2 , 30	3	7	2.2882222	p < 1e-04
unique_start_positions_coverage	2	60	50	50	325.0	0.00e+00	0.0000000	****	2.2829630	2 , 60	3	8	2.3971111	p < 1e-04
unique_start_positions_coverage	4	8	50	50	1074.5	2.25e-01	1.0000000	ns	2.3866667	4, 8	4	5	2.5060000	p = 1
unique_start_positions_coverage	4	15	50	50	576.5	3.10e-06	0.0000874	****	2.4903704	4 , 15	4	6	2.6148889	p < 1e-04
unique_start_positions_coverage	4	30	50	50	126.5	0.00e+00	0.0000000	****	2.5940741	4 , 30	4	7	2.7237778	p < 1e-04
unique_start_positions_coverage	4	60	50	50	270.0	0.00e+00	0.0000000	****	2.6977778	4 , 60	4	8	2.8326667	p < 1e-04
unique_start_positions_coverage	8	15	50	50	702.0	1.47e-04	0.0041160	**	2.8014815	8 , 15	5	6	2.9415556	p = 0.004116
unique_start_positions_coverage	8	30	50	50	214.0	0.00e+00	0.0000000	****	2.9051852	8 , 30	5	7	3.0504444	p < 1e-04
unique_start_positions_coverage	8	60	50	50	367.5	0.00e+00	0.0000000	****	3.0088889	8 , 60	5	8	3.1593333	p < 1e-04
unique_start_positions_coverage	15	30	50	50	453.5	0.00e+00	0.0000010	****	3.1125926	15, 30	6	7	3.2682222	p < 1e-04
unique_start_positions_coverage	15	60	50	50	783.0	1.00e-03	0.0280000		3.2162963	15, 60	6	8	3.3771111	p = 0.028
unique_start_positions_coverage	30	60	50	50	1739.5	6.96e-04	0.0194880		3.3200000	30, 60	7	8	3.4860000	p = 0.019488

13.6 Manuscript figures

legend <- cowplot::get_legend(
    elite_ave_performance_fig +
      guides(
        color=guide_legend(nrow=1),
        fill=guide_legend(nrow=1)
      ) +
      theme(
        legend.position = "bottom",
        legend.box="horizontal",
        legend.justification="center"
      )
  )

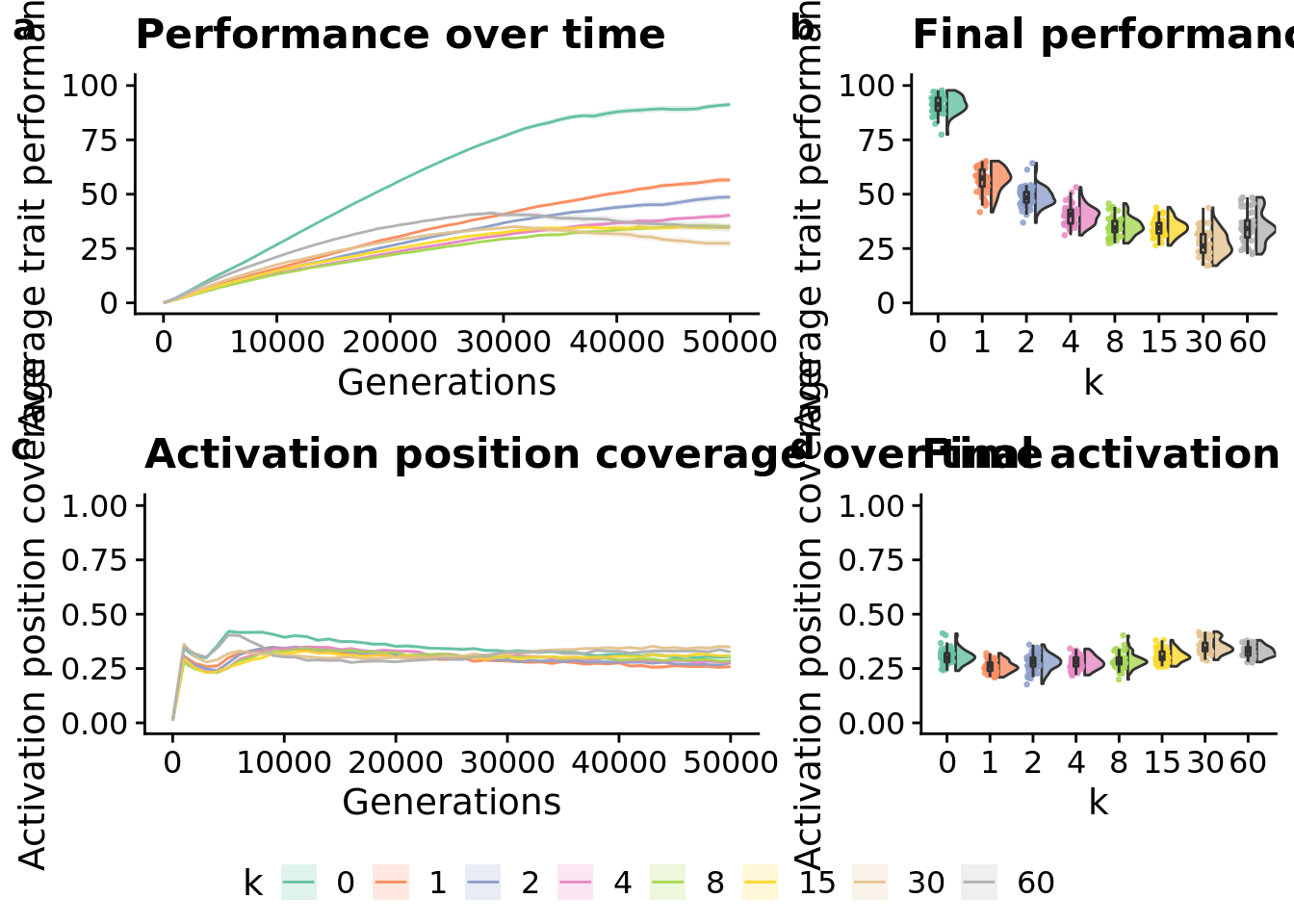

grid <- plot_grid(
  elite_ave_performance_fig +
    ggtitle("Performance over time") +
    theme(legend.position="none"),
  elite_final_performance_fig +
    ggtitle("Final performance") +
    theme(),
  unique_start_position_coverage_fig +
    ggtitle("Activation position coverage over time") +
    theme(legend.position="none"),
  unique_start_positions_coverage_final_fig +
    ggtitle("Final activation position coverage") +
    theme(),
  nrow=2,
  ncol=2,
  rel_widths=c(3,2),
  labels="auto"
)

grid <- plot_grid(
  grid,
  legend,
  nrow=2,
  ncol=1,
  rel_heights=c(1, 0.1)
)

save_plot(
  paste(working_directory, "imgs/novelty-panel.pdf", sep=""),
  grid,
  base_width=12,
  base_height=8
)

grid
