Chapter 7 Epsilon lexicase

7.1 Overview

# Relative location of data.
working_directory <- "experiments/2021-05-28-epsilon/analysis/"
# working_directory <- "./"

# Settings for visualization
cb_palette <- "Set2"
# Create directory to dump plots
dir.create(paste0(working_directory, "imgs"), showWarnings=FALSE)

7.2 Analysis dependencies

library(ggplot2)
library(tidyverse)
library(knitr)
library(cowplot)
library(viridis)
library(RColorBrewer)
library(rstatix)
library(ggsignif)
library(Hmisc)
library(kableExtra)
source("https://gist.githubusercontent.com/benmarwick/2a1bb0133ff568cbe28d/raw/fb53bd97121f7f9ce947837ef1a4c65a73bffb3f/geom_flat_violin.R")

These analyses were conducted in the following computing environment:

print(version)

##                _
## platform       x86_64-pc-linux-gnu
## arch           x86_64
## os             linux-gnu
## system         x86_64, linux-gnu
## status
## major          4
## minor          1.0
## year           2021
## month          05
## day            18
## svn rev        80317
## language       R
## version.string R version 4.1.0 (2021-05-18)
## nickname       Camp Pontanezen

7.3 Setup

data_loc <- paste0(
  working_directory,
  "data/timeseries-res-1000g.csv"
)
data <- read.csv(data_loc, na.strings="NONE")

data$cardinality <- as.factor(
  data$OBJECTIVE_CNT
)
data$selection_name <- as.factor(
  data$selection_name
)

data$epsilon <- as.factor(
  data$LEX_EPS
)

data$elite_trait_avg <-
  data$ele_agg_per / data$OBJECTIVE_CNT
data$unique_start_positions_coverage <-
  data$uni_str_pos / data$OBJECTIVE_CNT

final_data <- filter(data, evaluations==max(data$evaluations))

# Labeler for stats annotations
p_label <- function(p_value) {
  threshold = 0.0001
  if (p_value < threshold) {
    return(paste0("p < ", threshold))
  } else {
    return(paste0("p = ", p_value))
  }
}

# Significance threshold
alpha <- 0.05

####### misc #######
# Configure our default graphing theme
theme_set(theme_cowplot())

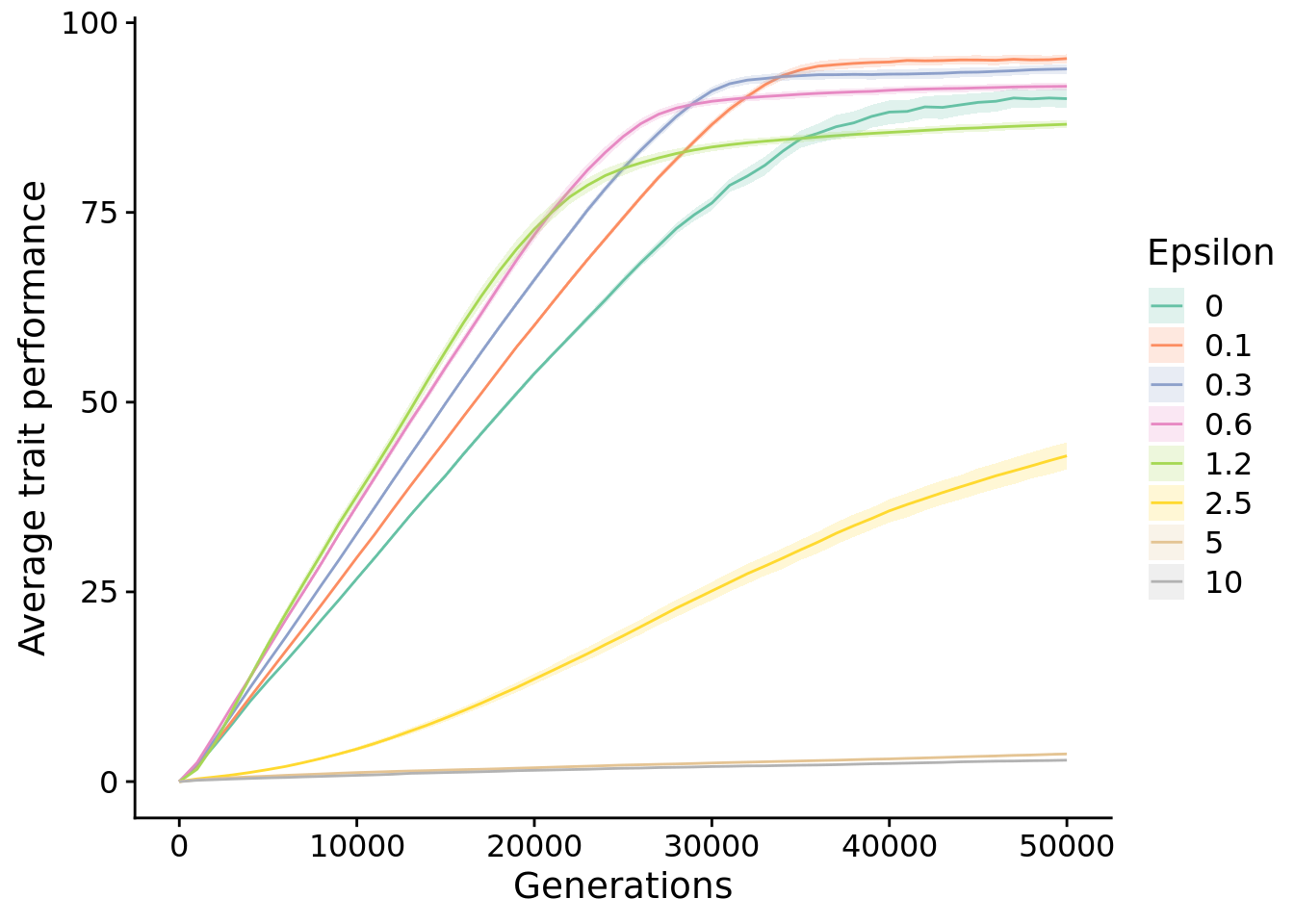

7.4 Exploration diagnostic performance

elite_ave_performance_fig <- ggplot(
    data,
    aes(x=gen, y=elite_trait_avg, color=epsilon, fill=epsilon)
  ) +
  stat_summary(geom="line", fun=mean) +
  stat_summary(
    geom="ribbon",
    fun.data="mean_cl_boot",
    fun.args=list(conf.int=0.95),
    alpha=0.2,
    linetype=0
  ) +
  scale_y_continuous(
    name="Average trait performance"
  ) +
  scale_x_continuous(
    name="Generations"
  ) +
  scale_fill_brewer(
    name="Epsilon",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Epsilon",
    palette=cb_palette
  )
elite_ave_performance_fig

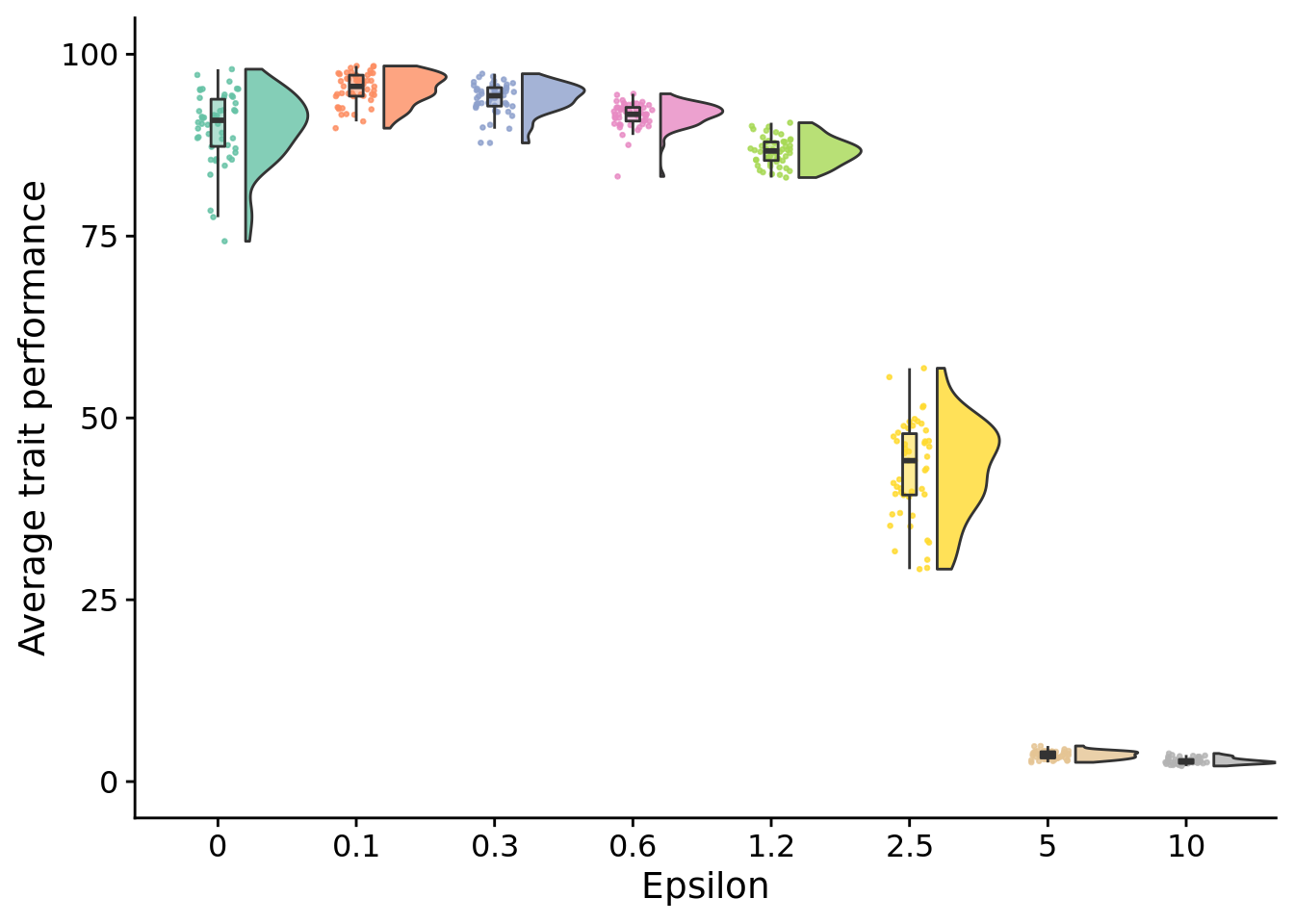

7.4.1 Final performance

# Compute manual labels for geom_signif
stat.test <- final_data %>%
  wilcox_test(elite_trait_avg ~ epsilon) %>%
  adjust_pvalue(method = "bonferroni") %>%
  add_significance() %>%
  add_xy_position(x="epsilon",step.increase=1)
stat.test$label <- mapply(p_label,stat.test$p.adj)

elite_final_performance_fig <- ggplot(
    final_data,
    aes(x=epsilon, y=elite_trait_avg, fill=epsilon)
  ) +
  geom_flat_violin(
    position = position_nudge(x = .2, y = 0),
    alpha = .8,
    scale="width"
  ) +
  geom_point(
    mapping=aes(color=epsilon),
    position = position_jitter(width = .15),
    size = .5,
    alpha = 0.8
  ) +
  geom_boxplot(
    width = .1,
    outlier.shape = NA,
    alpha = 0.5
  ) +
  scale_y_continuous(
    name="Average trait performance",
    limits=c(0, 100)
  ) +
  scale_x_discrete(
    name="Epsilon"
  ) +
  scale_fill_brewer(
    name="Epsilon",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Epsilon",
    palette=cb_palette
  ) +
  theme(
    legend.position="none"
  )
elite_final_performance_fig

stat.test %>%
  kbl() %>%
  kable_styling(
    bootstrap_options = c(
      "striped",
      "hover",
      "condensed",
      "responsive"
    )
  ) %>%
  scroll_box(width="600px")

.y.	group1	group2	n1	n2	statistic	p	p.adj	p.adj.signif	y.position	groups	xmin	xmax	label
elite_trait_avg	0	0.1	50	50	346	0.00e+00	0.00e+00	****	192.9100	0 , 0.1	1	2	p < 1e-04
elite_trait_avg	0	0.3	50	50	572	3.00e-06	8.40e-05	****	290.9318	0 , 0.3	1	3	p < 1e-04
elite_trait_avg	0	0.6	50	50	1013	1.03e-01	1.00e+00	ns	388.9536	0 , 0.6	1	4	p = 1
elite_trait_avg	0	1.2	50	50	1958	1.10e-06	3.02e-05	****	486.9753	0 , 1.2	1	5	p < 1e-04
elite_trait_avg	0	2.5	50	50	2500	0.00e+00	0.00e+00	****	584.9971	0 , 2.5	1	6	p < 1e-04
elite_trait_avg	0	5	50	50	2500	0.00e+00	0.00e+00	****	683.0189	0, 5	1	7	p < 1e-04
elite_trait_avg	0	10	50	50	2500	0.00e+00	0.00e+00	****	781.0407	0 , 10	1	8	p < 1e-04
elite_trait_avg	0.1	0.3	50	50	1685	3.00e-03	8.40e-02	ns	879.0624	0.1, 0.3	2	3	p = 0.084
elite_trait_avg	0.1	0.6	50	50	2242	0.00e+00	0.00e+00	****	977.0842	0.1, 0.6	2	4	p < 1e-04
elite_trait_avg	0.1	1.2	50	50	2497	0.00e+00	0.00e+00	****	1075.1060	0.1, 1.2	2	5	p < 1e-04
elite_trait_avg	0.1	2.5	50	50	2500	0.00e+00	0.00e+00	****	1173.1278	0.1, 2.5	2	6	p < 1e-04
elite_trait_avg	0.1	5	50	50	2500	0.00e+00	0.00e+00	****	1271.1496	0.1, 5	2	7	p < 1e-04
elite_trait_avg	0.1	10	50	50	2500	0.00e+00	0.00e+00	****	1369.1713	0.1, 10	2	8	p < 1e-04
elite_trait_avg	0.3	0.6	50	50	2048	0.00e+00	1.10e-06	****	1467.1931	0.3, 0.6	3	4	p < 1e-04
elite_trait_avg	0.3	1.2	50	50	2463	0.00e+00	0.00e+00	****	1565.2149	0.3, 1.2	3	5	p < 1e-04
elite_trait_avg	0.3	2.5	50	50	2500	0.00e+00	0.00e+00	****	1663.2367	0.3, 2.5	3	6	p < 1e-04
elite_trait_avg	0.3	5	50	50	2500	0.00e+00	0.00e+00	****	1761.2584	0.3, 5	3	7	p < 1e-04
elite_trait_avg	0.3	10	50	50	2500	0.00e+00	0.00e+00	****	1859.2802	0.3, 10	3	8	p < 1e-04
elite_trait_avg	0.6	1.2	50	50	2412	0.00e+00	0.00e+00	****	1957.3020	0.6, 1.2	4	5	p < 1e-04
elite_trait_avg	0.6	2.5	50	50	2500	0.00e+00	0.00e+00	****	2055.3238	0.6, 2.5	4	6	p < 1e-04
elite_trait_avg	0.6	5	50	50	2500	0.00e+00	0.00e+00	****	2153.3456	0.6, 5	4	7	p < 1e-04
elite_trait_avg	0.6	10	50	50	2500	0.00e+00	0.00e+00	****	2251.3673	0.6, 10	4	8	p < 1e-04
elite_trait_avg	1.2	2.5	50	50	2500	0.00e+00	0.00e+00	****	2349.3891	1.2, 2.5	5	6	p < 1e-04
elite_trait_avg	1.2	5	50	50	2500	0.00e+00	0.00e+00	****	2447.4109	1.2, 5	5	7	p < 1e-04
elite_trait_avg	1.2	10	50	50	2500	0.00e+00	0.00e+00	****	2545.4327	1.2, 10	5	8	p < 1e-04
elite_trait_avg	2.5	5	50	50	2500	0.00e+00	0.00e+00	****	2643.4544	2.5, 5	6	7	p < 1e-04
elite_trait_avg	2.5	10	50	50	2500	0.00e+00	0.00e+00	****	2741.4762	2.5, 10	6	8	p < 1e-04
elite_trait_avg	5	10	50	50	2225	0.00e+00	0.00e+00	****	2839.4980	5 , 10	7	8	p < 1e-04

7.5 Activation position coverage

unique_start_position_coverage_fig <- ggplot(
    data,
    aes(
      x=gen,
      y=unique_start_positions_coverage,
      color=epsilon,
      fill=epsilon
    )
  ) +
  stat_summary(geom="line", fun=mean) +
  stat_summary(
    geom="ribbon",
    fun.data="mean_cl_boot",
    fun.args=list(conf.int=0.95),
    alpha=0.2,
    linetype=0
  ) +
  scale_y_continuous(
    name="Activation position coverage",
    limits=c(0.0, 1.0)
  ) +
  scale_x_continuous(
    name="Generations"
  ) +
  scale_fill_brewer(
    name="Epsilon",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Epsilon",
    palette=cb_palette
  )
unique_start_position_coverage_fig

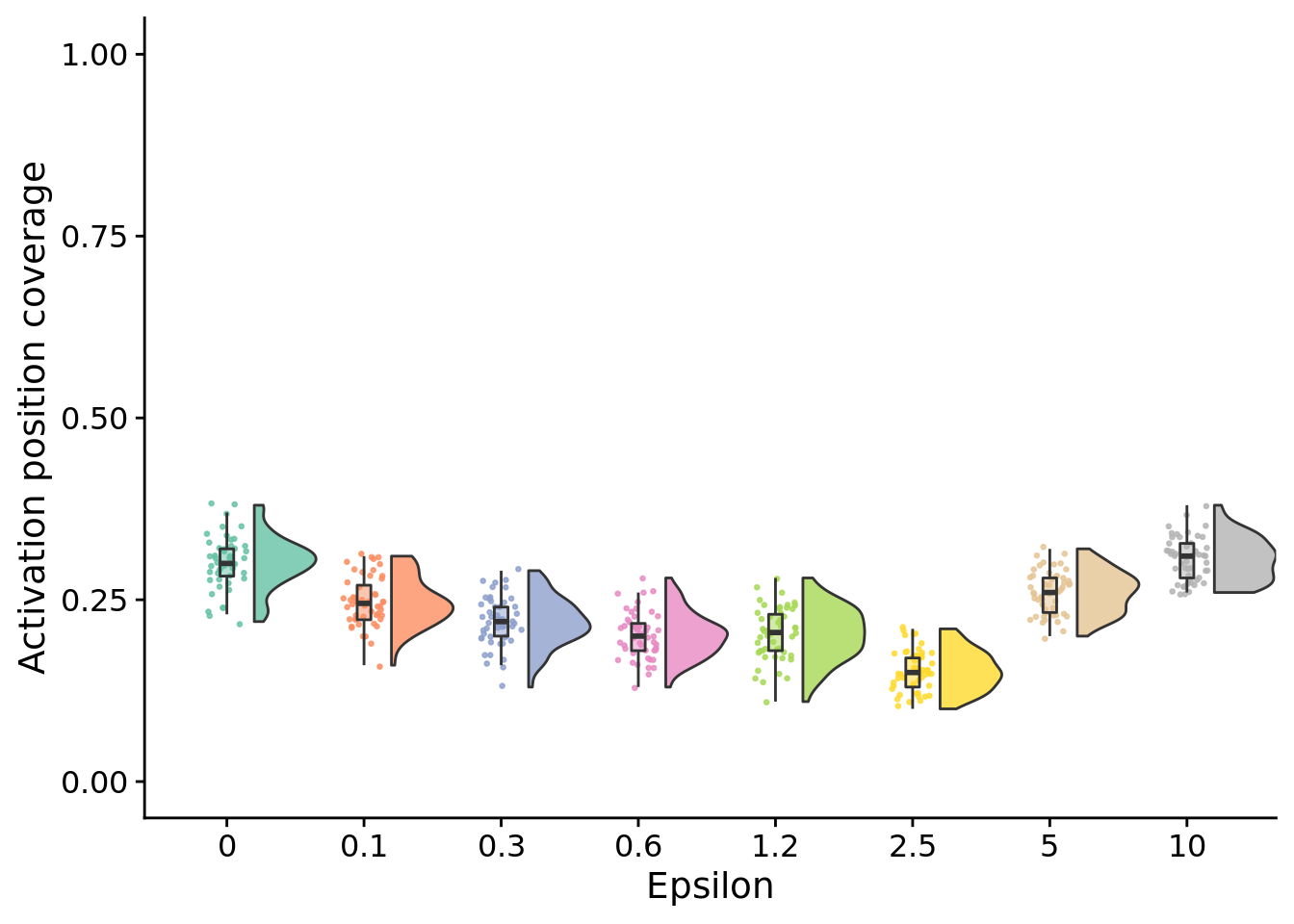

7.5.1 Final activation position coverage

# Compute manual labels for geom_signif
stat.test <- final_data %>%
  wilcox_test(unique_start_positions_coverage ~ epsilon) %>%
  adjust_pvalue(method = "bonferroni") %>%
  add_significance() %>%
  add_xy_position(x="epsilon",step.increase=1)
stat.test$label <- mapply(p_label,stat.test$p.adj)

unique_start_positions_coverage_final_fig <- ggplot(
    final_data,
    aes(
      x=epsilon,
      y=unique_start_positions_coverage,
      fill=epsilon
    )
  ) +
  geom_flat_violin(
    position = position_nudge(x = .2, y = 0),
    alpha = .8,
    scale="width"
  ) +
  geom_point(
    mapping=aes(color=epsilon),
    position = position_jitter(width = .15),
    size = .5,
    alpha = 0.8
  ) +
  geom_boxplot(
    width = .1,
    outlier.shape = NA,
    alpha = 0.5
  ) +
  scale_y_continuous(
    name="Activation position coverage",
    limits=c(0, 1.0)
  ) +
  scale_x_discrete(
    name="Epsilon"
  ) +
  scale_fill_brewer(
    name="Epsilon",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Epsilon",
    palette=cb_palette
  ) +
  theme(
    legend.position="none"
  )
unique_start_positions_coverage_final_fig

stat.test %>%
  kbl() %>%
  kable_styling(
    bootstrap_options = c(
      "striped",
      "hover",
      "condensed",
      "responsive"
    )
  ) %>%
  scroll_box(width="600px")

.y.	group1	group2	n1	n2	statistic	p	p.adj	p.adj.signif	y.position	groups	xmin	xmax	label
unique_start_positions_coverage	0	0.1	50	50	2144.0	0.00e+00	0.0000000	****	0.5500000	0 , 0.1	1	2	p < 1e-04
unique_start_positions_coverage	0	0.3	50	50	2379.0	0.00e+00	0.0000000	****	0.7262963	0 , 0.3	1	3	p < 1e-04
unique_start_positions_coverage	0	0.6	50	50	2449.0	0.00e+00	0.0000000	****	0.9025926	0 , 0.6	1	4	p < 1e-04
unique_start_positions_coverage	0	1.2	50	50	2427.5	0.00e+00	0.0000000	****	1.0788889	0 , 1.2	1	5	p < 1e-04
unique_start_positions_coverage	0	2.5	50	50	2500.0	0.00e+00	0.0000000	****	1.2551852	0 , 2.5	1	6	p < 1e-04
unique_start_positions_coverage	0	5	50	50	2050.5	0.00e+00	0.0000009	****	1.4314815	0, 5	1	7	p < 1e-04
unique_start_positions_coverage	0	10	50	50	1207.5	7.71e-01	1.0000000	ns	1.6077778	0 , 10	1	8	p = 1
unique_start_positions_coverage	0.1	0.3	50	50	1796.0	1.58e-04	0.0044240	**	1.7840741	0.1, 0.3	2	3	p = 0.004424
unique_start_positions_coverage	0.1	0.6	50	50	2107.0	0.00e+00	0.0000001	****	1.9603704	0.1, 0.6	2	4	p < 1e-04
unique_start_positions_coverage	0.1	1.2	50	50	2018.5	1.00e-07	0.0000030	****	2.1366667	0.1, 1.2	2	5	p < 1e-04
unique_start_positions_coverage	0.1	2.5	50	50	2465.0	0.00e+00	0.0000000	****	2.3129630	0.1, 2.5	2	6	p < 1e-04
unique_start_positions_coverage	0.1	5	50	50	962.0	4.60e-02	1.0000000	ns	2.4892593	0.1, 5	2	7	p = 1
unique_start_positions_coverage	0.1	10	50	50	267.0	0.00e+00	0.0000000	****	2.6655556	0.1, 10	2	8	p < 1e-04
unique_start_positions_coverage	0.3	0.6	50	50	1657.5	5.00e-03	0.1400000	ns	2.8418519	0.3, 0.6	3	4	p = 0.14
unique_start_positions_coverage	0.3	1.2	50	50	1557.0	3.40e-02	0.9520000	ns	3.0181481	0.3, 1.2	3	5	p = 0.952
unique_start_positions_coverage	0.3	2.5	50	50	2328.5	0.00e+00	0.0000000	****	3.1944444	0.3, 2.5	3	6	p < 1e-04
unique_start_positions_coverage	0.3	5	50	50	457.0	0.00e+00	0.0000012	****	3.3707407	0.3, 5	3	7	p < 1e-04
unique_start_positions_coverage	0.3	10	50	50	66.5	0.00e+00	0.0000000	****	3.5470370	0.3, 10	3	8	p < 1e-04
unique_start_positions_coverage	0.6	1.2	50	50	1187.5	6.68e-01	1.0000000	ns	3.7233333	0.6, 1.2	4	5	p = 1
unique_start_positions_coverage	0.6	2.5	50	50	2184.5	0.00e+00	0.0000000	****	3.8996296	0.6, 2.5	4	6	p < 1e-04
unique_start_positions_coverage	0.6	5	50	50	218.0	0.00e+00	0.0000000	****	4.0759259	0.6, 5	4	7	p < 1e-04
unique_start_positions_coverage	0.6	10	50	50	19.0	0.00e+00	0.0000000	****	4.2522222	0.6, 10	4	8	p < 1e-04
unique_start_positions_coverage	1.2	2.5	50	50	2131.5	0.00e+00	0.0000000	****	4.4285185	1.2, 2.5	5	6	p < 1e-04
unique_start_positions_coverage	1.2	5	50	50	289.5	0.00e+00	0.0000000	****	4.6048148	1.2, 5	5	7	p < 1e-04
unique_start_positions_coverage	1.2	10	50	50	22.5	0.00e+00	0.0000000	****	4.7811111	1.2, 10	5	8	p < 1e-04
unique_start_positions_coverage	2.5	5	50	50	4.5	0.00e+00	0.0000000	****	4.9574074	2.5, 5	6	7	p < 1e-04
unique_start_positions_coverage	2.5	10	50	50	0.0	0.00e+00	0.0000000	****	5.1337037	2.5, 10	6	8	p < 1e-04
unique_start_positions_coverage	5	10	50	50	386.5	0.00e+00	0.0000001	****	5.3100000	5 , 10	7	8	p < 1e-04

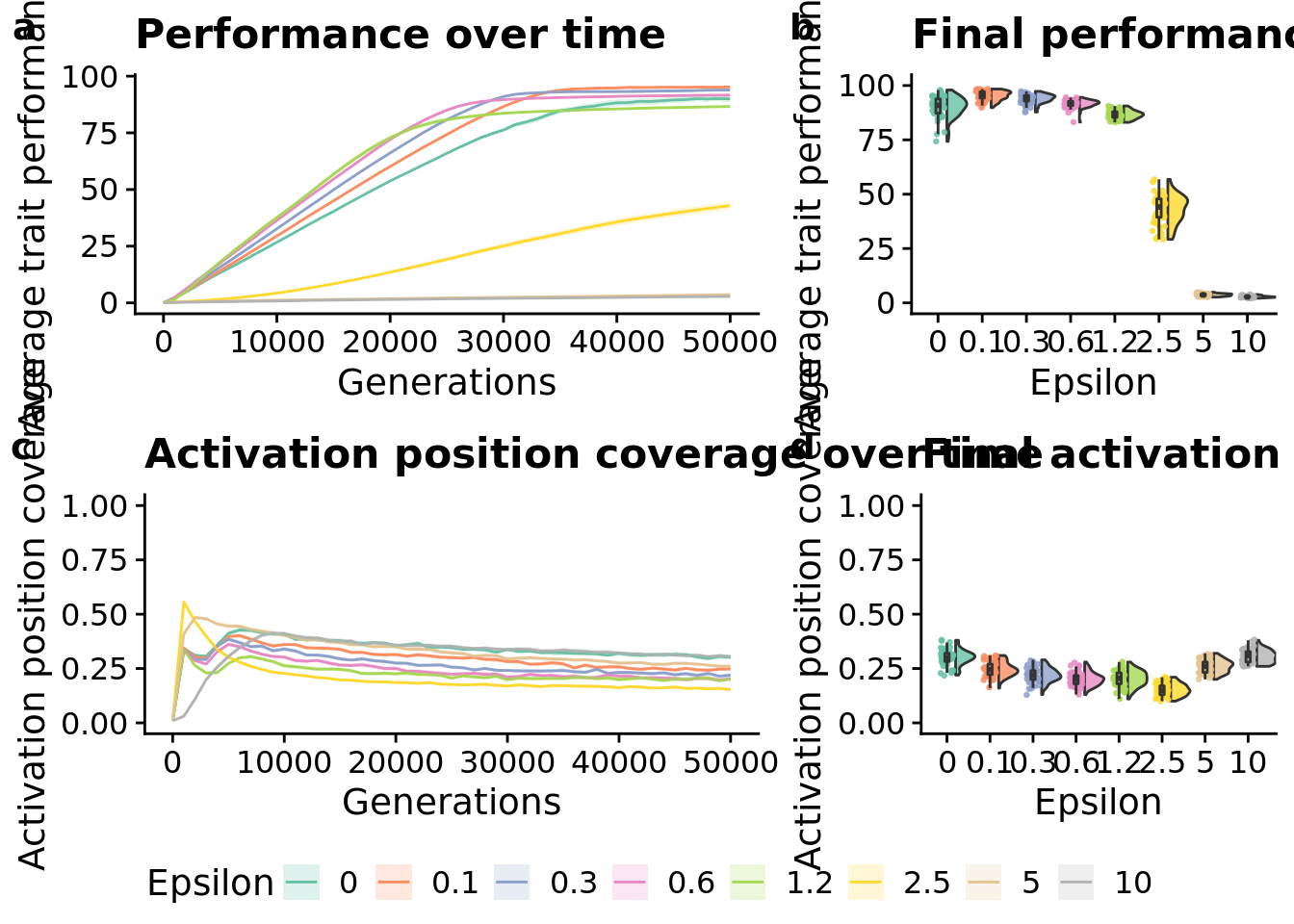

7.6 Manuscript figures

legend <- cowplot::get_legend(
    elite_ave_performance_fig +
      guides(
        color=guide_legend(nrow=1),
        fill=guide_legend(nrow=1)
      ) +
      theme(
        legend.position = "bottom",
        legend.box="horizontal",
        legend.justification="center"
      )
  )

grid <- plot_grid(
  elite_ave_performance_fig +
    ggtitle("Performance over time") +
    theme(legend.position="none"),
  elite_final_performance_fig +
    ggtitle("Final performance") +
    theme(),
  unique_start_position_coverage_fig +
    ggtitle("Activation position coverage over time") +
    theme(legend.position="none"),
  unique_start_positions_coverage_final_fig +
    ggtitle("Final activation position coverage") +
    theme(),
  nrow=2,
  ncol=2,
  rel_widths=c(3,2),
  labels="auto"
)

grid <- plot_grid(
  grid,
  legend,
  nrow=2,
  ncol=1,
  rel_heights=c(1, 0.1)
)

save_plot(
  paste(working_directory, "imgs/epsilon-panel.pdf", sep=""),
  grid,
  base_width=12,
  base_height=8
)

grid
