Chapter 10 Cohort lexicase

10.1 Overview

# Relative location of data.
working_directory <- "experiments/2021-06-01-cohort/analysis/"
# working_directory <- "./"

# Settings for visualization
cb_palette <- "Set2"

# Create directory to dump plots
dir.create(paste0(working_directory, "imgs"), showWarnings=FALSE)

10.2 Analysis dependencies

library(ggplot2)
library(tidyverse)
library(knitr)
library(cowplot)
library(viridis)
library(RColorBrewer)
library(rstatix)
library(ggsignif)
library(Hmisc)
library(kableExtra)
source("https://gist.githubusercontent.com/benmarwick/2a1bb0133ff568cbe28d/raw/fb53bd97121f7f9ce947837ef1a4c65a73bffb3f/geom_flat_violin.R")

These analyses were conducted in the following computing environment:

print(version)

##                _
## platform       x86_64-pc-linux-gnu
## arch           x86_64
## os             linux-gnu
## system         x86_64, linux-gnu
## status
## major          4
## minor          1.0
## year           2021
## month          05
## day            18
## svn rev        80317
## language       R
## version.string R version 4.1.0 (2021-05-18)
## nickname       Camp Pontanezen

10.3 Setup

data_loc <- paste0(working_directory, "data/timeseries.csv")
data <- read.csv(data_loc, na.strings="NONE")

data$cardinality <- as.factor(
  data$OBJECTIVE_CNT
)
data$selection_name <- as.factor(
  data$selection_name
)

data$epsilon <- as.factor(
  data$LEX_EPS
)

data$proportion <- factor(
  data$COH_LEX_PROP,
  levels=c(1, 0.5, 0.2, 0.1, 0.05, 0.02, 0.01)
)

data$elite_trait_avg <-
  data$ele_agg_per / data$OBJECTIVE_CNT
data$unique_start_positions_coverage <-
  data$uni_str_pos / data$OBJECTIVE_CNT

final_data <- filter(data, evaluations==max(data$evaluations))

# Labeler for stats annotations
p_label <- function(p_value) {
  threshold = 0.0001
  if (p_value < threshold) {
    return(paste0("p < ", threshold))
  } else {
    return(paste0("p = ", p_value))
  }
}

# Significance threshold
alpha <- 0.05

####### misc #######
# Configure our default graphing theme
theme_set(theme_cowplot())

10.4 Exploration diagnostic performance

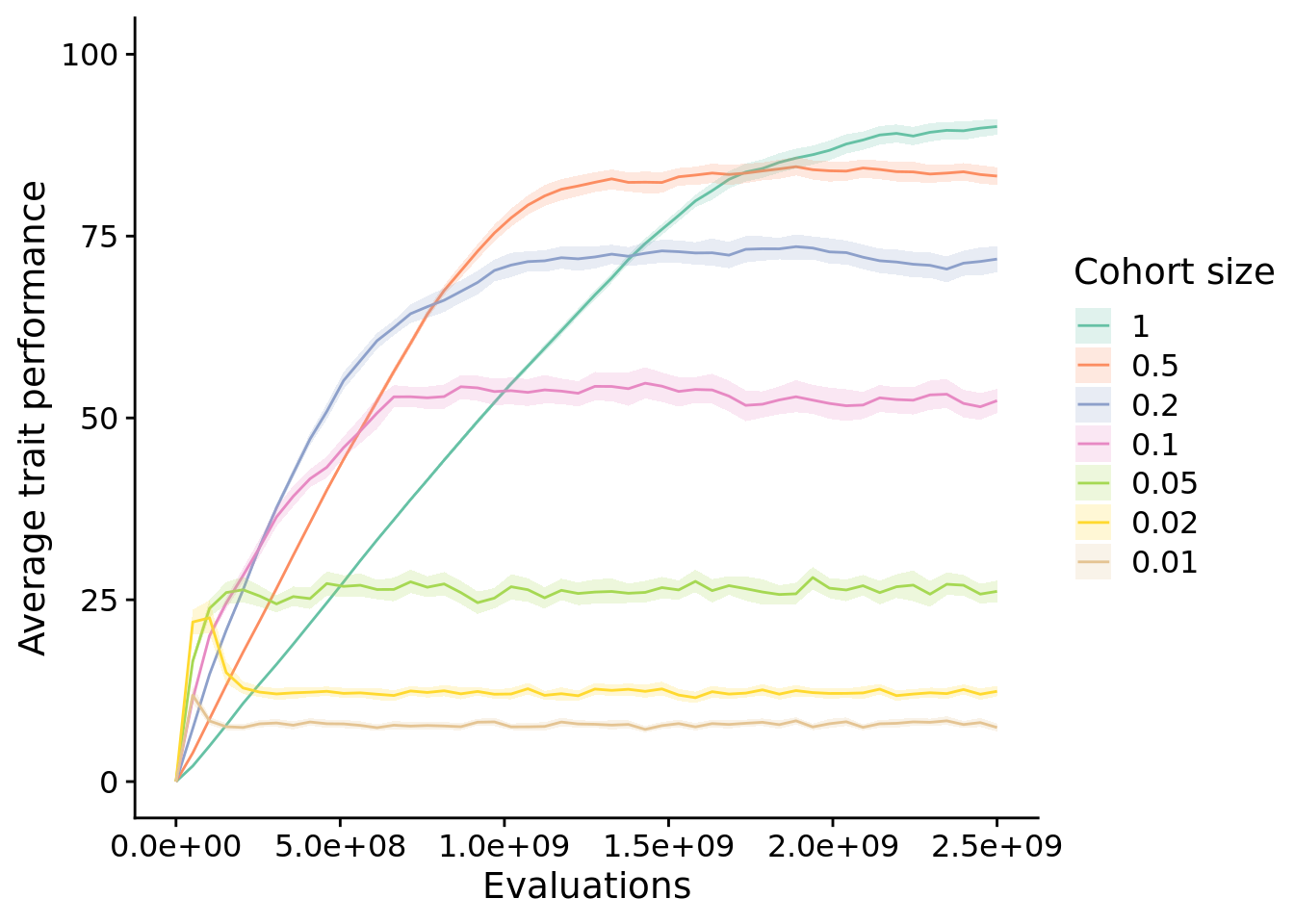

elite_ave_performance_fig <- ggplot(
    data,
    aes(
      x=evaluations,
      y=elite_trait_avg,
      color=proportion,
      fill=proportion
    )
  ) +
  stat_summary(geom="line", fun=mean) +
  stat_summary(
    geom="ribbon",
    fun.data="mean_cl_boot",
    fun.args=list(conf.int=0.95),
    alpha=0.2,
    linetype=0
  ) +
  scale_y_continuous(
    name="Average trait performance",
    limits=c(0, 100)
  ) +
  scale_x_continuous(
    name="Evaluations"
  ) +
  scale_fill_brewer(
    name="Cohort size",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Cohort size",
    palette=cb_palette
  )
elite_ave_performance_fig

10.4.1 Final performance

# Compute manual labels for geom_signif
stat.test <- final_data %>%
  wilcox_test(elite_trait_avg ~ proportion) %>%
  adjust_pvalue(method = "bonferroni") %>%
  add_significance() %>%
  add_xy_position(x="proportion",step.increase=1)
stat.test$manual_position <- stat.test$y.position * 1.05
stat.test$label <- mapply(p_label,stat.test$p.adj)

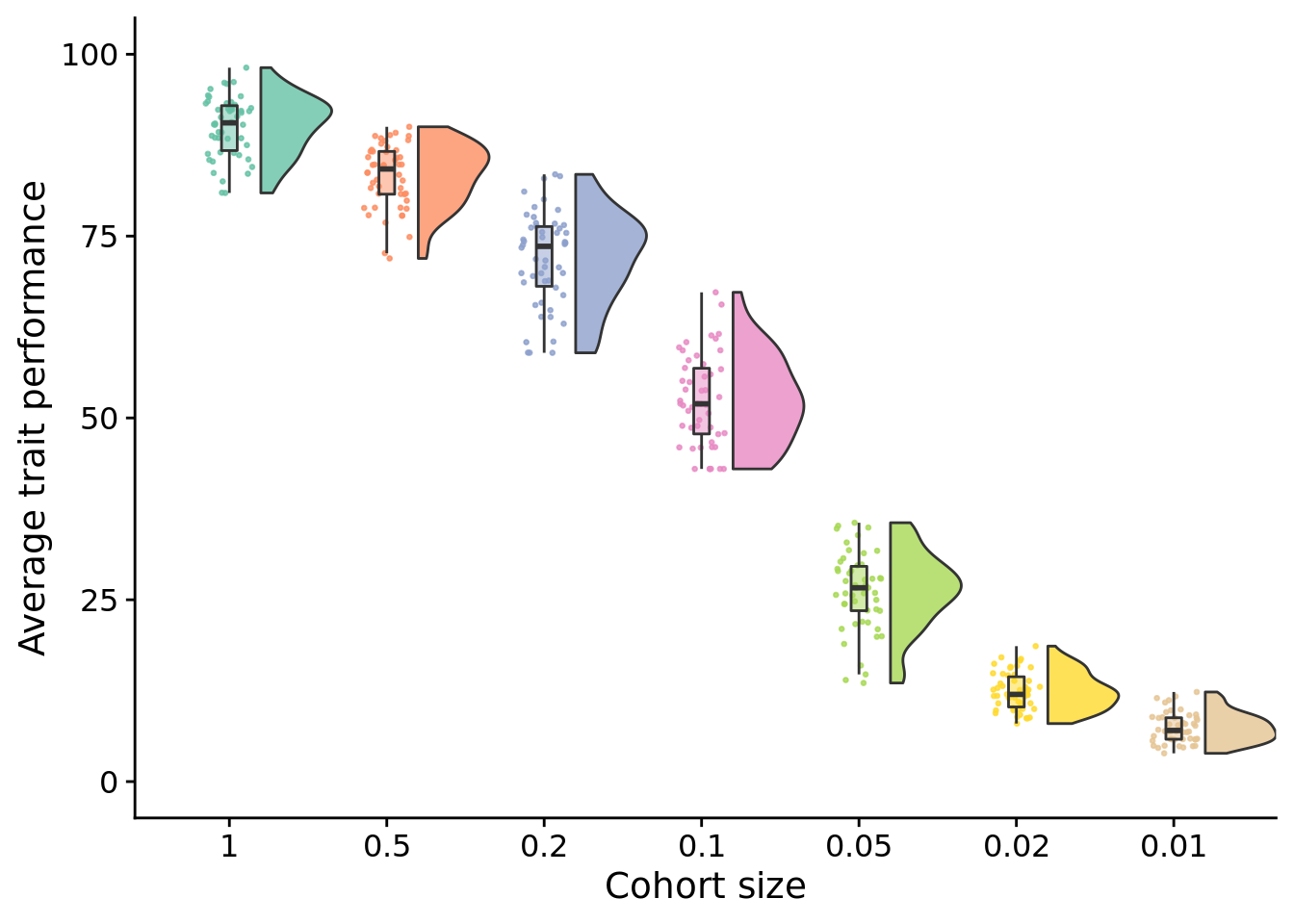

elite_final_performance_fig <- ggplot(
    final_data,
    aes(x=proportion, y=elite_trait_avg, fill=proportion)
  ) +
  geom_flat_violin(
    position = position_nudge(x = .2, y = 0),
    alpha = .8,
    scale="width"
  ) +
  geom_point(
    mapping=aes(color=proportion),
    position = position_jitter(width = .15),
    size = .5,
    alpha = 0.8
  ) +
  geom_boxplot(
    width = .1,
    outlier.shape = NA,
    alpha = 0.5
  ) +
  scale_y_continuous(
    name="Average trait performance",
    limits=c(0, 100)
  ) +
  scale_x_discrete(
    name="Cohort size"
  ) +
  scale_fill_brewer(
    name="Cohort size",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Cohort size",
    palette=cb_palette
  ) +
  theme(
    legend.position="none"
  )
elite_final_performance_fig

stat.test %>%
  kbl() %>%
  kable_styling(
    bootstrap_options = c(
      "striped",
      "hover",
      "condensed",
      "responsive"
    )
  ) %>%
  scroll_box(width="600px")

.y.	group1	group2	n1	n2	statistic	p	p.adj	p.adj.signif	y.position	groups	xmin	xmax	manual_position	label
elite_trait_avg	1	0.5	50	50	2173	0	0	****	183.9910	1 , 0.5	1	2	193.1906	p < 1e-04
elite_trait_avg	1	0.2	50	50	2489	0	0	****	274.1178	1 , 0.2	1	3	287.8236	p < 1e-04
elite_trait_avg	1	0.1	50	50	2500	0	0	****	364.2445	1 , 0.1	1	4	382.4567	p < 1e-04
elite_trait_avg	1	0.05	50	50	2500	0	0	****	454.3712	1 , 0.05	1	5	477.0898	p < 1e-04
elite_trait_avg	1	0.02	50	50	2500	0	0	****	544.4980	1 , 0.02	1	6	571.7229	p < 1e-04
elite_trait_avg	1	0.01	50	50	2500	0	0	****	634.6247	1 , 0.01	1	7	666.3560	p < 1e-04
elite_trait_avg	0.5	0.2	50	50	2333	0	0	****	724.7515	0.5, 0.2	2	3	760.9891	p < 1e-04
elite_trait_avg	0.5	0.1	50	50	2500	0	0	****	814.8782	0.5, 0.1	2	4	855.6222	p < 1e-04
elite_trait_avg	0.5	0.05	50	50	2500	0	0	****	905.0050	0.5 , 0.05	2	5	950.2553	p < 1e-04
elite_trait_avg	0.5	0.02	50	50	2500	0	0	****	995.1318	0.5 , 0.02	2	6	1044.8883	p < 1e-04
elite_trait_avg	0.5	0.01	50	50	2500	0	0	****	1085.2585	0.5 , 0.01	2	7	1139.5214	p < 1e-04
elite_trait_avg	0.2	0.1	50	50	2450	0	0	****	1175.3853	0.2, 0.1	3	4	1234.1545	p < 1e-04
elite_trait_avg	0.2	0.05	50	50	2500	0	0	****	1265.5120	0.2 , 0.05	3	5	1328.7876	p < 1e-04
elite_trait_avg	0.2	0.02	50	50	2500	0	0	****	1355.6388	0.2 , 0.02	3	6	1423.4207	p < 1e-04
elite_trait_avg	0.2	0.01	50	50	2500	0	0	****	1445.7655	0.2 , 0.01	3	7	1518.0538	p < 1e-04
elite_trait_avg	0.1	0.05	50	50	2500	0	0	****	1535.8923	0.1 , 0.05	4	5	1612.6869	p < 1e-04
elite_trait_avg	0.1	0.02	50	50	2500	0	0	****	1626.0190	0.1 , 0.02	4	6	1707.3200	p < 1e-04
elite_trait_avg	0.1	0.01	50	50	2500	0	0	****	1716.1457	0.1 , 0.01	4	7	1801.9530	p < 1e-04
elite_trait_avg	0.05	0.02	50	50	2456	0	0	****	1806.2725	0.05, 0.02	5	6	1896.5861	p < 1e-04
elite_trait_avg	0.05	0.01	50	50	2500	0	0	****	1896.3992	0.05, 0.01	5	7	1991.2192	p < 1e-04
elite_trait_avg	0.02	0.01	50	50	2343	0	0	****	1986.5260	0.02, 0.01	6	7	2085.8523	p < 1e-04

10.5 Activation position coverage

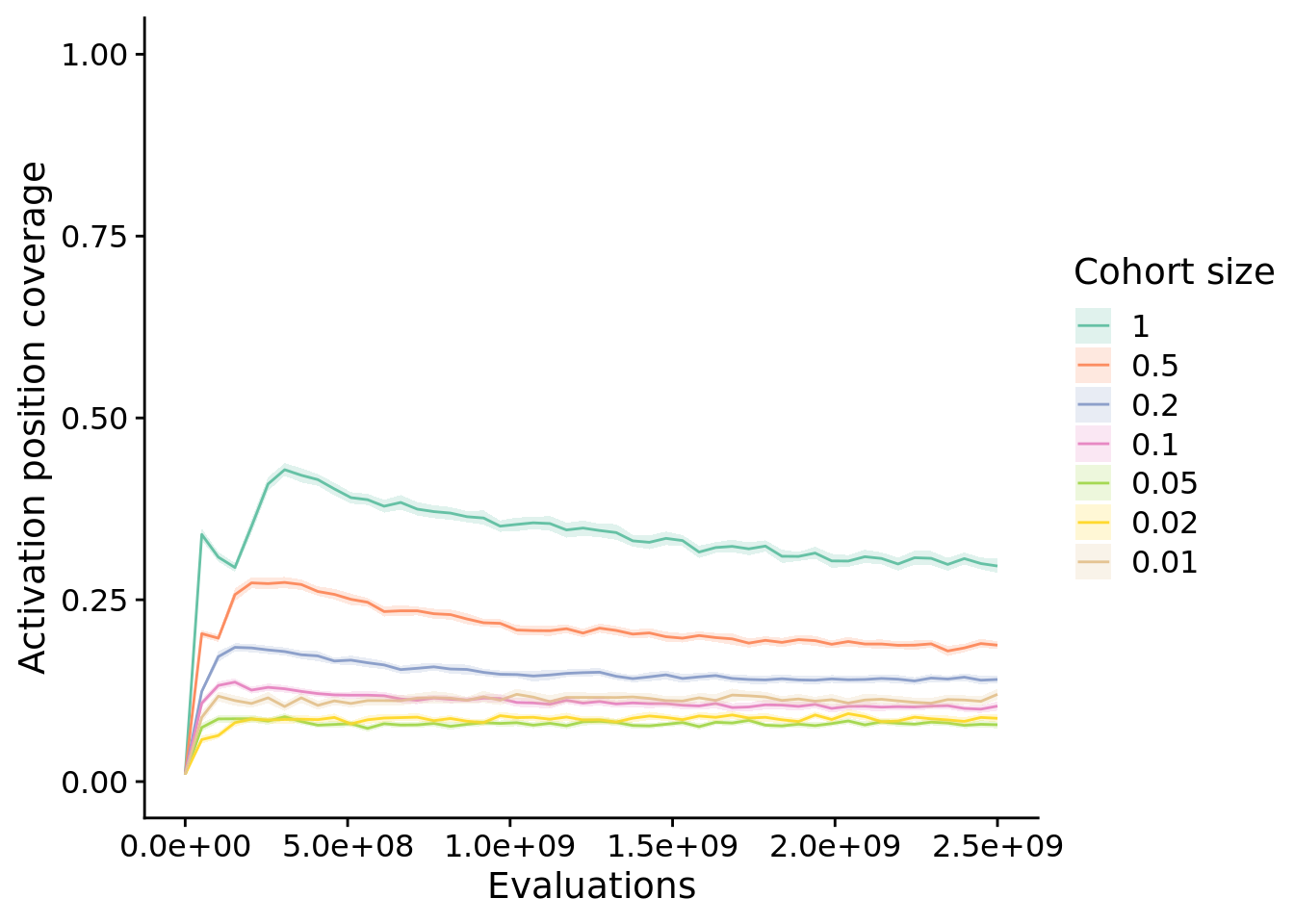

unique_start_position_coverage_fig <- ggplot(
    data,
    aes(
      x=evaluations,
      y=unique_start_positions_coverage,
      color=proportion,
      fill=proportion
    )
  ) +
  stat_summary(geom="line", fun=mean) +
  stat_summary(
    geom="ribbon",
    fun.data="mean_cl_boot",
    fun.args=list(conf.int=0.95),
    alpha=0.2,
    linetype=0
  ) +
  scale_y_continuous(
    name="Activation position coverage",
    limits=c(0.0, 1.0)
  ) +
  scale_x_continuous(
    name="Evaluations"
  ) +
  scale_fill_brewer(
    name="Cohort size",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Cohort size",
    palette=cb_palette
  )
unique_start_position_coverage_fig

10.5.1 Final activation position coverage

# Compute manual labels for geom_signif
stat.test <- final_data %>%
  wilcox_test(unique_start_positions_coverage ~ proportion) %>%
  adjust_pvalue(method = "bonferroni") %>%
  add_significance() %>%
  add_xy_position(x="proportion",step.increase=1)
stat.test$manual_position <- stat.test$y.position * 1.05
stat.test$label <- mapply(p_label,stat.test$p.adj)

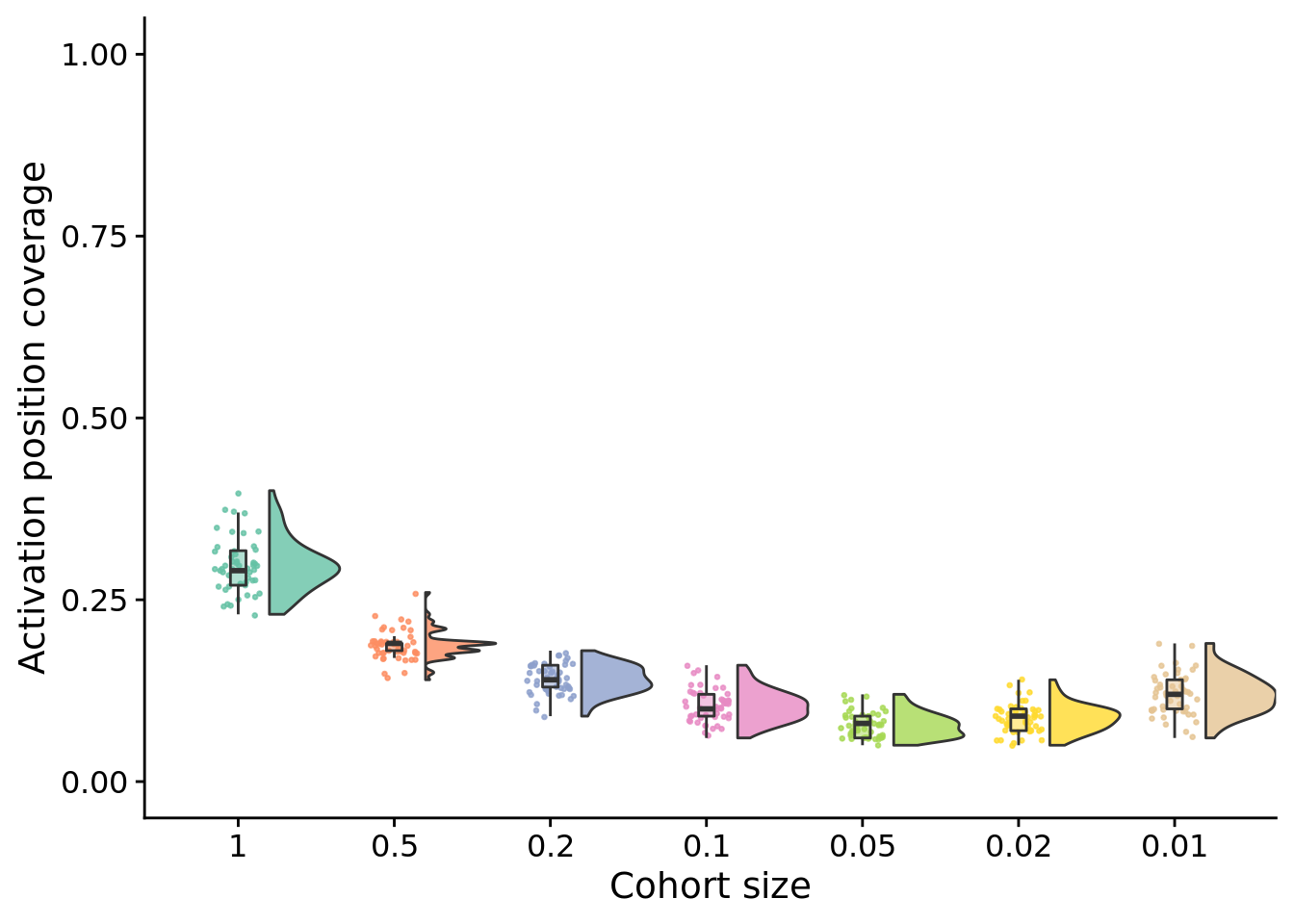

unique_start_positions_coverage_final_fig <- ggplot(
    final_data,
    aes(
      x=proportion,
      y=unique_start_positions_coverage,
      fill=proportion
    )
  ) +
  geom_flat_violin(
    position = position_nudge(x = .2, y = 0),
    alpha = .8,
    scale="width"
  ) +
  geom_point(
    mapping=aes(color=proportion),
    position = position_jitter(width = .15),
    size = .5,
    alpha = 0.8
  ) +
  geom_boxplot(
    width = .1,
    outlier.shape = NA,
    alpha = 0.5
  ) +
  scale_y_continuous(
    name="Activation position coverage",
    limits=c(0, 1.0)
  ) +
  scale_x_discrete(
    name="Cohort size"
  ) +
  scale_fill_brewer(
    name="Cohort size",
    palette=cb_palette
  ) +
  scale_color_brewer(
    name="Cohort size",
    palette=cb_palette
  ) +
  theme(
    legend.position="none"
  )
unique_start_positions_coverage_final_fig

stat.test %>%
  kbl() %>%
  kable_styling(
    bootstrap_options = c(
      "striped",
      "hover",
      "condensed",
      "responsive"
    )
  ) %>%
  scroll_box(width="600px")

.y.	group1	group2	n1	n2	statistic	p	p.adj	p.adj.signif	y.position	groups	xmin	xmax	manual_position	label
unique_start_positions_coverage	1	0.5	50	50	2492.0	0.00e+00	0.0000000	****	0.680	1 , 0.5	1	2	0.7140	p < 1e-04
unique_start_positions_coverage	1	0.2	50	50	2500.0	0.00e+00	0.0000000	****	0.974	1 , 0.2	1	3	1.0227	p < 1e-04
unique_start_positions_coverage	1	0.1	50	50	2500.0	0.00e+00	0.0000000	****	1.268	1 , 0.1	1	4	1.3314	p < 1e-04
unique_start_positions_coverage	1	0.05	50	50	2500.0	0.00e+00	0.0000000	****	1.562	1 , 0.05	1	5	1.6401	p < 1e-04
unique_start_positions_coverage	1	0.02	50	50	2500.0	0.00e+00	0.0000000	****	1.856	1 , 0.02	1	6	1.9488	p < 1e-04
unique_start_positions_coverage	1	0.01	50	50	2500.0	0.00e+00	0.0000000	****	2.150	1 , 0.01	1	7	2.2575	p < 1e-04
unique_start_positions_coverage	0.5	0.2	50	50	2412.5	0.00e+00	0.0000000	****	2.444	0.5, 0.2	2	3	2.5662	p < 1e-04
unique_start_positions_coverage	0.5	0.1	50	50	2492.5	0.00e+00	0.0000000	****	2.738	0.5, 0.1	2	4	2.8749	p < 1e-04
unique_start_positions_coverage	0.5	0.05	50	50	2500.0	0.00e+00	0.0000000	****	3.032	0.5 , 0.05	2	5	3.1836	p < 1e-04
unique_start_positions_coverage	0.5	0.02	50	50	2499.5	0.00e+00	0.0000000	****	3.326	0.5 , 0.02	2	6	3.4923	p < 1e-04
unique_start_positions_coverage	0.5	0.01	50	50	2417.5	0.00e+00	0.0000000	****	3.620	0.5 , 0.01	2	7	3.8010	p < 1e-04
unique_start_positions_coverage	0.2	0.1	50	50	2216.5	0.00e+00	0.0000000	****	3.914	0.2, 0.1	3	4	4.1097	p < 1e-04
unique_start_positions_coverage	0.2	0.05	50	50	2469.0	0.00e+00	0.0000000	****	4.208	0.2 , 0.05	3	5	4.4184	p < 1e-04
unique_start_positions_coverage	0.2	0.02	50	50	2416.5	0.00e+00	0.0000000	****	4.502	0.2 , 0.02	3	6	4.7271	p < 1e-04
unique_start_positions_coverage	0.2	0.01	50	50	1834.0	5.05e-05	0.0010605	**	4.796	0.2 , 0.01	3	7	5.0358	p = 0.0010605
unique_start_positions_coverage	0.1	0.05	50	50	2044.0	0.00e+00	0.0000007	****	5.090	0.1 , 0.05	4	5	5.3445	p < 1e-04
unique_start_positions_coverage	0.1	0.02	50	50	1781.5	2.17e-04	0.0045570	**	5.384	0.1 , 0.02	4	6	5.6532	p = 0.004557
unique_start_positions_coverage	0.1	0.01	50	50	812.0	2.00e-03	0.0420000		5.678	0.1 , 0.01	4	7	5.9619	p = 0.042
unique_start_positions_coverage	0.05	0.02	50	50	902.5	1.50e-02	0.3150000	ns	5.972	0.05, 0.02	5	6	6.2706	p = 0.315
unique_start_positions_coverage	0.05	0.01	50	50	242.0	0.00e+00	0.0000000	****	6.266	0.05, 0.01	5	7	6.5793	p < 1e-04
unique_start_positions_coverage	0.02	0.01	50	50	405.5	0.00e+00	0.0000001	****	6.560	0.02, 0.01	6	7	6.8880	p < 1e-04

10.6 Manuscript figures

legend <- cowplot::get_legend(
    elite_ave_performance_fig +
      guides(
        color=guide_legend(nrow=1),
        fill=guide_legend(nrow=1)
      ) +
      theme(
        legend.position = "bottom",
        legend.box="horizontal",
        legend.justification="center"
      )
  )

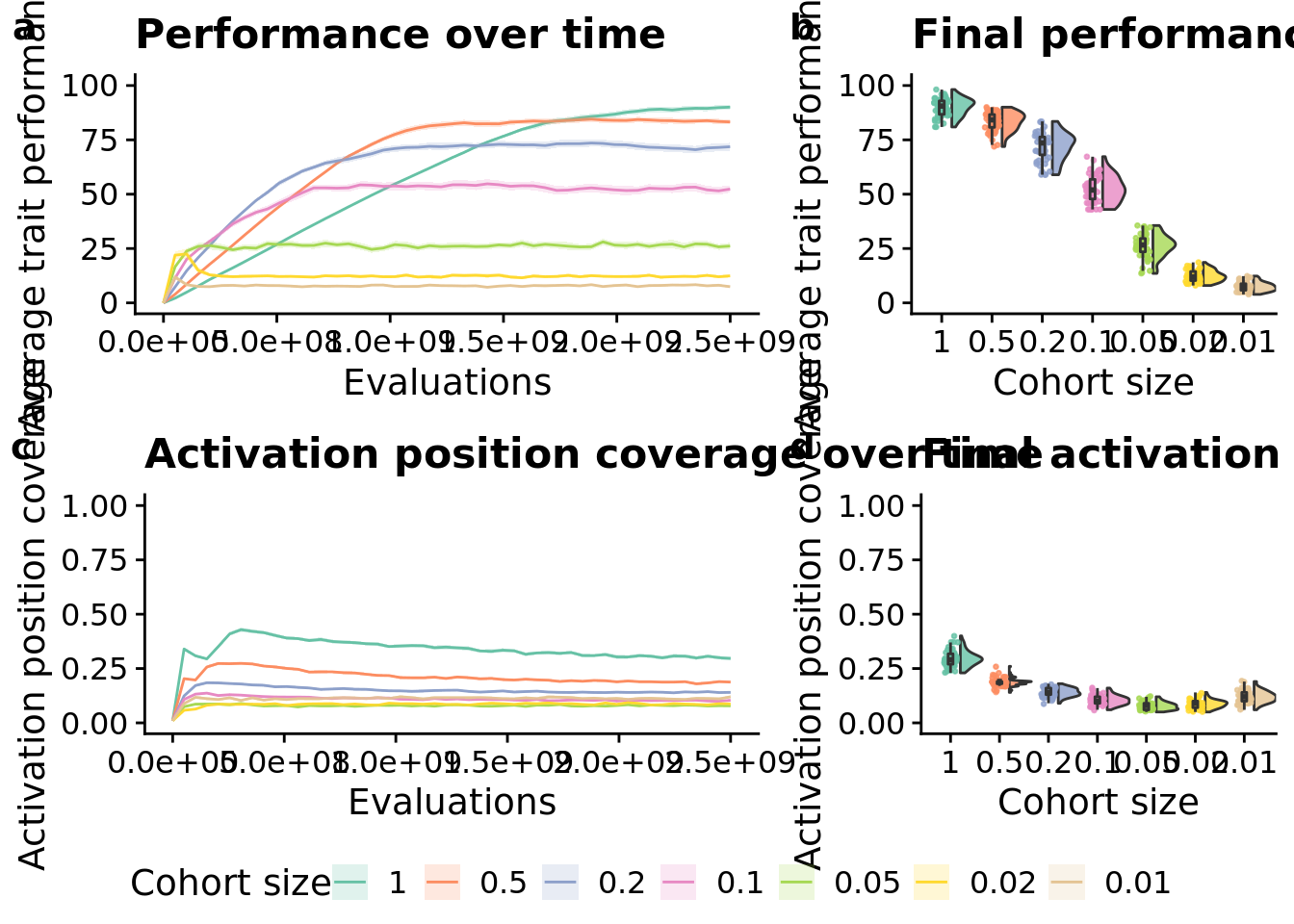

grid <- plot_grid(
